Aluminum foil tape series

With soft aluminum foil and Mylar aluminum foil as the substrate, coated with acrylic glue, it has good anti-electromagnetic (EMI) performance, strong adhesion, good electrical conductivity and good heat resistance.

Including: pure aluminum foil, single conductive aluminum foil, double conductive aluminum foil, self-adhesive aluminum foil Mylar, conductive aluminum foil Mylar.

Pure aluminum foil

Self-adhesive aluminum foil wheat

Pure aluminum foil

Conductive aluminum

foil mylar

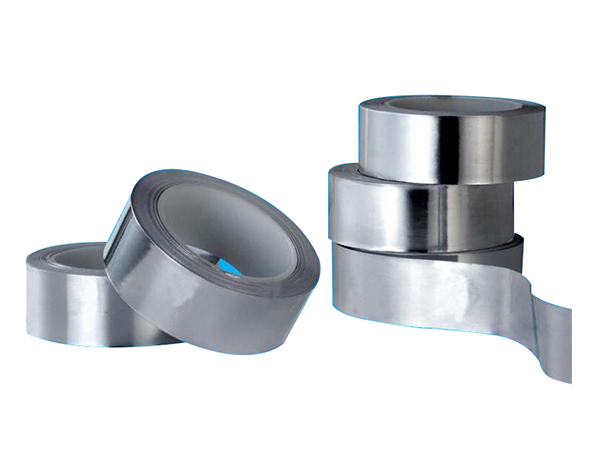

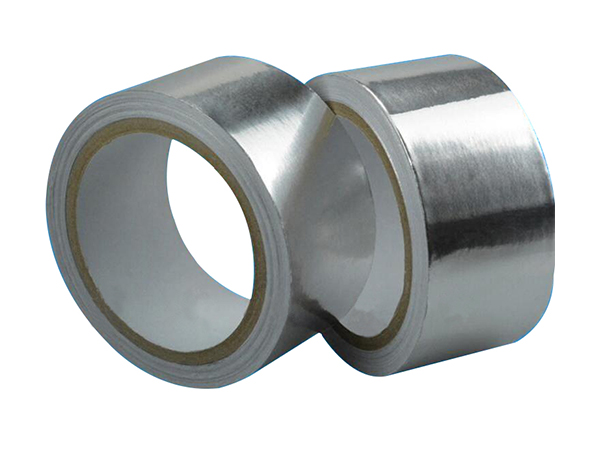

Conductive aluminum

foil mylar

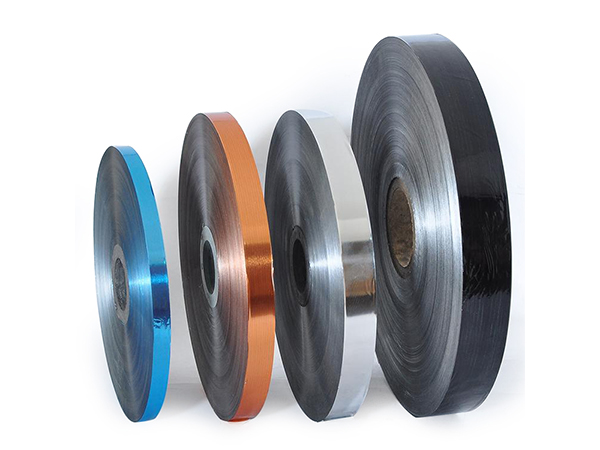

Self-adhesive aluminum

foil Myra

1. Pure aluminum foil: it has the function of shielding and conducting.

2. Single-lead aluminum foil: conductive (non-conductive plastic surface), shielding, fitting and fixing.

3. Double-conducting aluminum foil: conductive (shield conductive), shielding, fitting and fixing.
4. Self-adhesive aluminum foil Mylar: Coat self-adhesive on the surface of aluminum foil (the surface of the adhesive is not conductive), which has the effect of

    shielding and insulation.

5. Aluminum foil guide Mylar: Apply conductive adhesive (adhesive conductive) on the surface of the aluminum foil, which has the functions of shielding,

    insulation and conductivity.

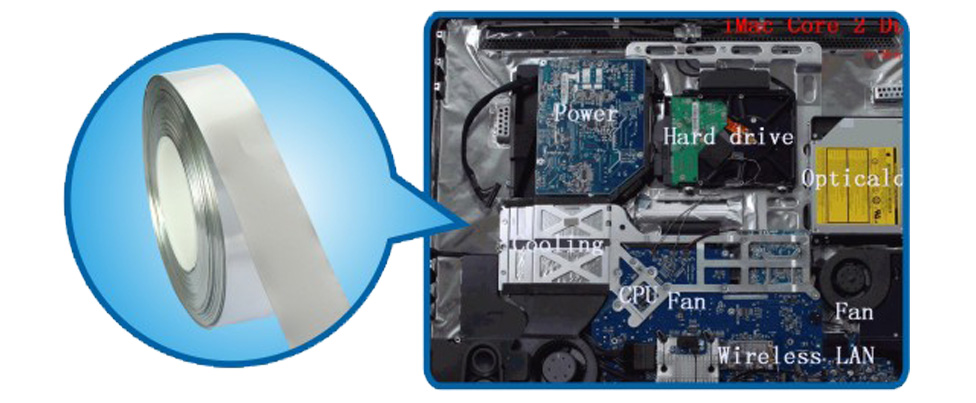

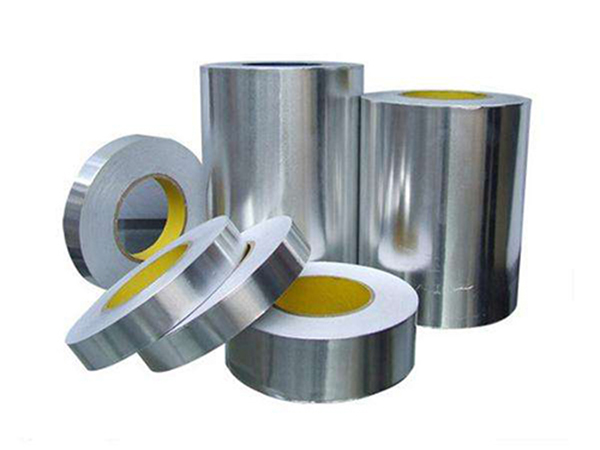

纯铝箔

KAPTON(金手指)                         KAPTON(金手指) 应用举例

              Pure aluminum foil                            Application example of pure aluminum foil

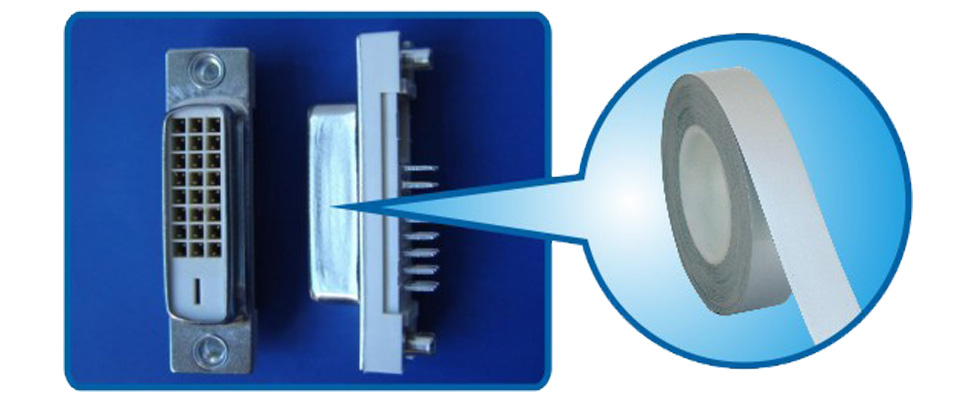

单导铝箔

KAPTON(金手指)                           KAPTON(金手指) 应用举例

                                                          Single guide aluminum foil                                  Application examples of single guide aluminum foil

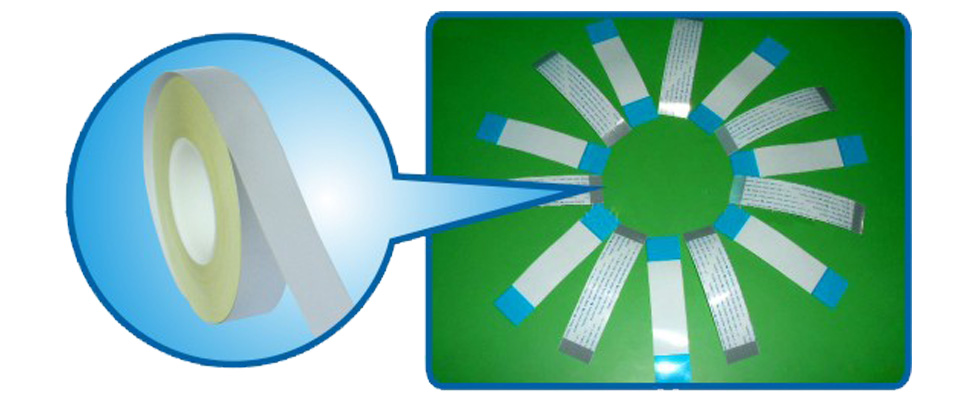

双导铝箔

绿色胶带                                              绿色胶带应用举例

                Double-conducting aluminum foil                          Double-conducting aluminum foil application case

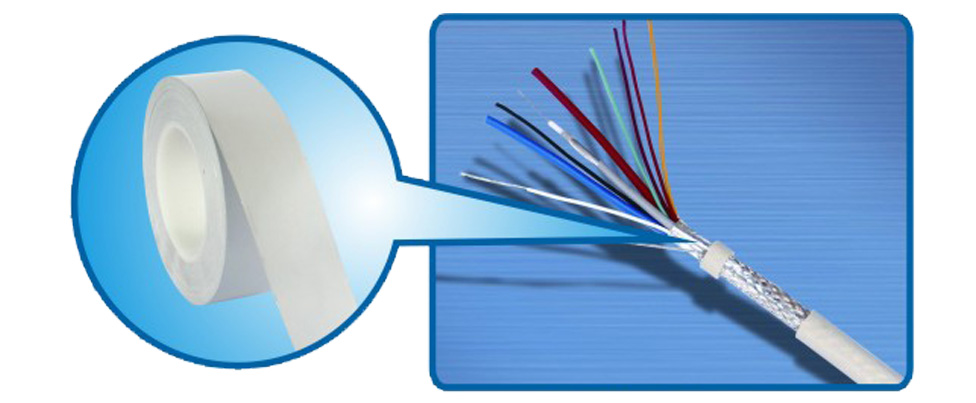

自粘铝箔麦拉

                Self-adhesive aluminum foil Myra                          Self-adhesive aluminum foil Mylar application case

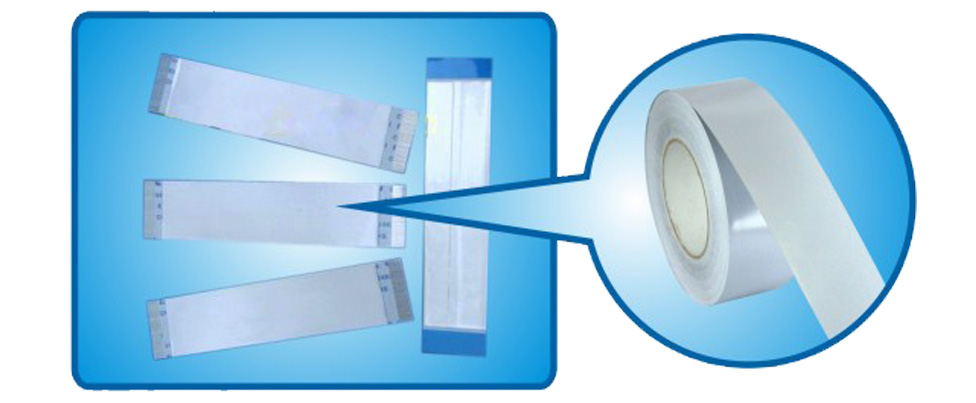

导电铝箔麦拉

                                                          Conductive aluminum foil mylar                                  Conductive aluminum foil Mylar application case

Product Features


Anti-electromagnetic (EMI) interference can effectively isolate the influence of electromagnetic waves.
With strong adhesive force and good electrical conductivity, it can be cut into various specifications according to customer requirements.
It has good heat resistance, good effect on point magnetic shielding, and good performance for electrostatic discharge after grounding.The composite material can exert good adhesion to the adhesive without primer treatment.

Product Usage


Used in digital cameras, mobile phones, DVDs, HVDs, FFCs of computers, wire assemblies and cables, and power supplies.

It is suitable for all kinds of electronic products such as transformers, mobile phones, computers, PDAs, PDPs, LCD monitors, notebook computers, copiers, etc. where electromagnetic shielding is required.

Eliminate electromagnetic (EMI) interference and isolate electromagnetic waves from harming the human body.

Product

category

Product ID

Thickness

(mm)

Substrate Glue

Peel force

(kgf/25mm)

Surface

resistance(Ω)

Electromagnetic wave

Occlusion rate

(500MHZ/dB)

Anti-tension

(kg/25mm)

Retentivity

(H/kg)

Copper foil Rubber surface
Pure aluminum foil HT-0225A 0.06/0.08 Aluminum foil Acrylic ≥1.0 0.06~.08 / 60-80 ≥6 ≥24
HT-0275

Product

category

Product ID

Thickness

(mm)

Substrate Glue

Peel force

(kgf/25mm)

Surface

resistance(Ω)

Electromagnetic wave

Occlusion rate

(500MHZ/dB)

Anti-tension

(kg/25mm)

Retentivity

(H/kg)

Copper foil Rubber surface

Single guide

aluminum foil

HT-0230D 0.06/0.08 Aluminum foil Acrylic ≥1.0 0.06~0.08 / 60~80 ≥6 ≥24
HT-250D

Product

category

Product ID

Thickness

(mm)

Substrate Glue

Peel force

(kgf/25mm)

Surface

resistance(Ω)

Electromagnetic wave

Occlusion rate

(500MHZ/dB)

Anti-tension

(kg/25mm)

Retentivity

(H/kg)

Copper foil Rubber surface

Double-conducting

aluminum foil

HT-0230S 0.6/0.08 Aluminum foil

Acrylic conductive adhesive

≥1.0 0.06~0.08 <0.08 60-80 ≥6 ≥24
HT-0250S

Product

category

Product ID

Thickness

(mm)

Substrate Glue

Peel force

(kgf/25mm)

Surface

resistance(Ω)

Electromagnetic wave

Occlusion rate

(500MHZ/dB)

Anti-tension

(kg/25mm)

Retentivity

(H/kg)

Copper foil Rubber surface

Self-adhesive

aluminum foil Myra

HT-0225CM 0.06/0.1

PET+

Aluminum foil

Acrylic ≥1.0 / / / ≥6 ≥24
HT-0270CM

Product

category

Product ID

Thickness

(mm)

Substrate Glue

Peel force

(kgf/25mm)

Surface

resistance(Ω)

Electromagnetic wave

Occlusion rate

(500MHZ/dB)

Anti-tension

(kg/25mm)

Retentivity

(H/kg)

Copper foil Rubber surface

Conductive

aluminum foil mylar

HT-0225SM 0.06/0.1

PET+

Aluminum foil

Acrylic

conductive

adhesive

≥1.0 / <0.05 60-80 ≥6 ≥24
HT-0270SM
product category Pure aluminum foil
Product ID HT-0225A HT-0275A

Thickness

(mm)

0.06/0.08
Substrate Aluminum foil
Glue Acrylic

Peel force

(kgf/25mm)

≥1.0

Surface impedance

(Ω)

Copper

foil

0.06~0.08
Rubber surface /

Electromagnetic

wave shielding rate

(500MHZ/dB)

60-80

Anti-tension

(kg/25mm)

≥6

Retentivity

(H/kg)

≥24
product category

Single guide

aluminum foil

Product ID HT-0230D HT-0250D

Thickness

(mm)

0.06/0.08
Substrate Aluminum foil
Glue Acrylic

Peel force

(kgf/25mm)

≥1.0

Surface impedance

(Ω)

Copper

foil

0.06~0.08
Rubber surface /

Electromagnetic

wave shielding rate

(500MHZ/dB)

60-80

Anti-tension

(kg/25mm)

≥6

Retentivity

(H/kg)

≥24
product category Double-conducting aluminum foil
Product ID HT-0230S HT-0250D

Thickness

(mm)

0.06/0.08
Substrate Aluminum foil
Glue

Acrylic conductive

adhesive

Peel force

(kgf/25mm)

≥1

Surface impedance

(Ω)

Copper

foil

0.06~0.08
Rubber surface <0.05

Electromagnetic

wave shielding rate

(500MHZ/dB)

60-80

Anti-tension

(kg/25mm)

≥6

Retentivity

(H/kg)

≥24
product category

Self-adhesive

aluminum foil Myra

Product ID HT-0225CM

HT-

027CM

Thickness

(mm)

0.06/0.1
Substrate

PET+

Aluminum foil

Glue Acrylic

Peel force

(kgf/25mm)

≥1.0

Surface impedance

(Ω)

Copper

foil

/
Rubber surface /

Electromagnetic

wave shielding rate

(500MHZ/dB)

/

Anti-tension

(kg/25mm)

≥6

Retentivity

(H/kg)

≥24
product category

Conductive

aluminum foil mylar

Product ID HT-0225SM

HT-

0270SM

Thickness

(mm)

0.06/0.1
Substrate

PET+

Aluminum foil

Glue

Acrylic conductive

adhesive

Peel force

(kgf/25mm)

≥1.0

Surface impedance

(Ω)

Copper

foil

/
Rubber surface 0.05

Electromagnetic

wave shielding rate

(500MHZ/dB)

60-80

Anti-tension

(kg/25mm)

≥6

Retentivity

(H/kg)

≥24
