Masking tape series

Using textured paper and pressure-sensitive glue as the main raw materials, coated with pressure-sensitive adhesive on textured paper and coated with anti-sticking material on the other side, it is a roll-shaped adhesive tape with high temperature resistance, good chemical resistance High adhesion, soft clothing and no tears left after tearing. Including: water-based (normal temperature type) masking tape, rubber-based (medium temperature type) masking tape and silicone-based (high temperature type) masking tape.

Flame retardant

acetate cloth

Non-flame retardant acetate cloth

Water Glue Masking Tape

Rubber masking tape

Silicone masking tape

Silicone masking tape

1. Water glue series (normal temperature type) masking tape: base material: single-layer masking paper, glue system: water glue series, temperature resistance

    below 80 ℃.

2. Rubber (medium temperature) masking tape: substrate: single-layer masking paper, adhesive: rubber, temperature resistance at 80 ℃ -120 ℃.

3. Silicone (high temperature type) masking tape: substrate: composite masking paper, adhesive: silicone, temperature resistance at 120 ℃ -250 ℃.

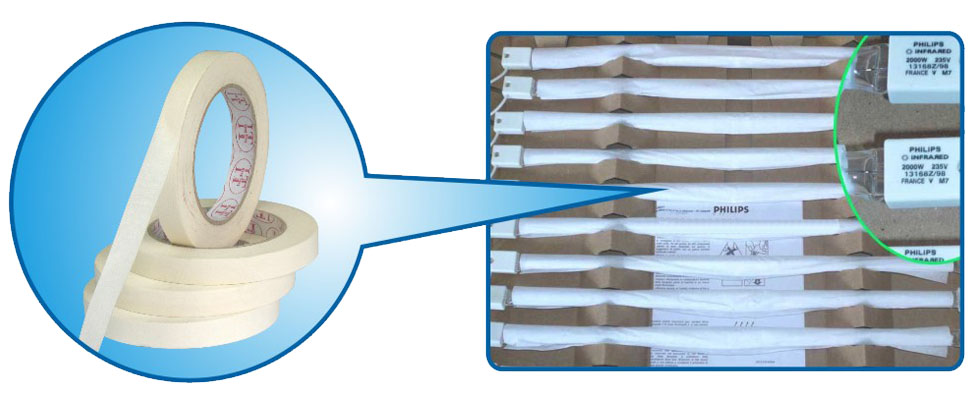

水胶系美纹纸胶带

KAPTON(金手指)                         KAPTON(金手指) 应用举例

                       Water-based masking tape                                       Application example of water-based masking tape

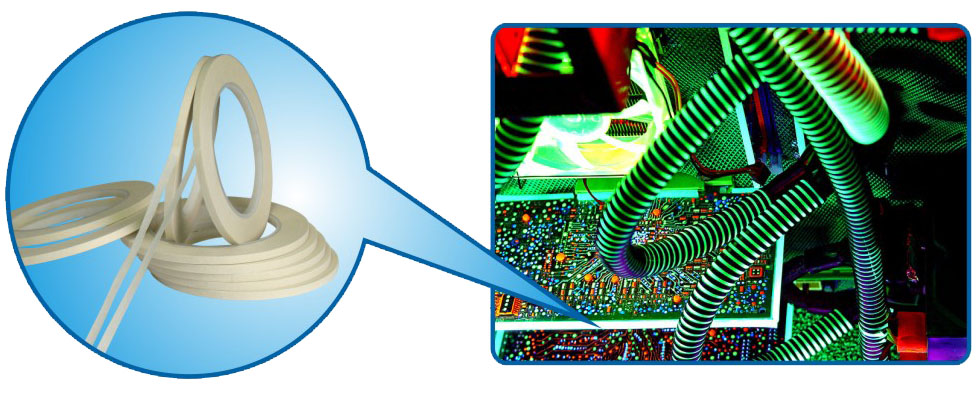

橡胶系美纹纸胶带

KAPTON(金手指)                           KAPTON(金手指) 应用举例

                       Rubber masking tape                                       Application example of rubber masking tape

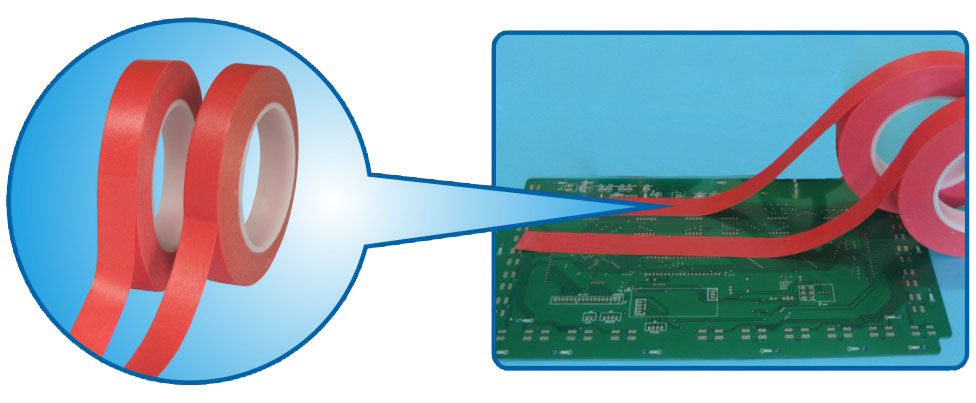

硅胶系美纹纸胶带

绿色胶带                                              绿色胶带应用举例

Silicone masking tape                                                         Case of Silicone Masking Tape

Product Features


Single-layer masking adhesive (water-based and rubber-based masking tape): strong stripping, strong adhesion, protection and fixing, solvent resistance, and no residual adhesive.

Composite masking (silicone-based masking tape): the tape has strong peeling force, excellent adhesion and initial adhesion, acid and alkali resistance, no fading, no delamination, and a temperature resistance of 230 to 260 degrees.

Product Usage


Widely used in monitors, computers, mobile phones, digital cameras, LCDs, refrigerators, air conditioners...

Water-based adhesive masking paper: spray paint at room temperature for decoration, covering with light objects, fixing light objects, removing lint, packaging...
Rubber-based masking paper: car paint spraying cover, baking paint coating cover...

Silicone textured paper: high temperature spray paint, baking paint, electronics industry...

Product category Product ID

Thickness

(mm)

Substrate Glue

Peel force

(kgf/25mm)

Initial tack

(mm)

Anti-tension

(kg/25mm)

Colour

Temperature

resistance

(℃)

Retentivity

(H/kg)

Water Glue Masking Tape HT-0615W 0.15 Textured paper Water glue 0.7

<160(¢5.556ball)

≥2 Creamy-white RT-80 ≥24

Rubber

masking tape

HT-0616W 0.14 Textured paper Rubber 0.7 <160(¢5.556ball) ≥2 Creamy-white RT-120 ≥24

Silicone

masking tape

HT-0516W 0.25 Textured paper Silica gel 0.5 <160(¢7.144ball) ≥15 Red RT-250 ≥24
HT-0625W 0.25 Textured paper Silica gel 0.5 <160(¢7.144ball) ≥15 White RT-250 ≥24
Product category Water-based masking tape Rubber masking tape

Silicone

masking tape

Product ID HT-0615W HT-0616W HT-0516R HT-0625W

Thickness

(mm)

0.15 0.14 0.25 0.25
Substrate Textured paper Textured paper

Textured paper

Textured paper

Glue water glue Rubber

Silica gel

Silica gel

Peel force

(kgf/25mm)

0.7 0.7 0.5 0.5

Initial tack

(mm)

<160

(¢5.556

ball)

<160

(¢5.556

ball)

<160

(¢7.144

ball)

<160

(¢7.144

ball)

Anti-tension

(kg/25mm)

≥2 ≥2 ≥15 ≥15
Colour Creamy-white Creamy-white Red White

Temperature resistance

(℃)

RT-80 RT-120 RT-250 RT-250

Retentivity

(H/kg)

≥24 ≥24 ≥24 ≥24
