Acetate cloth tape series

It is made of high-quality acetate cloth as the base material, coated with acrylic resin and optionally added with a flame retardant. It has good insulation properties, high temperature resistance, anti-aging, soft docile, easy punching, easy unwinding, and resistance. Acid and alkali, anti-mold. Including: flame retardant acetate cloth and non-flame retardant acetate cloth tape.

Flame retardant acetate cloth

Non-flame retardant acetate cloth

Flame retardant acetate cloth

Flame retardant acetate cloth

Non-flame retardant acetate cloth

Non-flame retardant acetate cloth

1. Non-flame-retardant acetate cloth: Acrylic fiber cloth is used as the base material, which has no flame-retardant properties, and black and white can be selected.

2. Flame retardant acetate cloth: Acetate fiber cloth is used as the base material, coated with acrylic glue and added with flame retardant, which has excellent flame

    retardant properties, and can be selected from black and white.

阻燃醋酸布

KAPTON(金手指)                         KAPTON(金手指) 应用举例

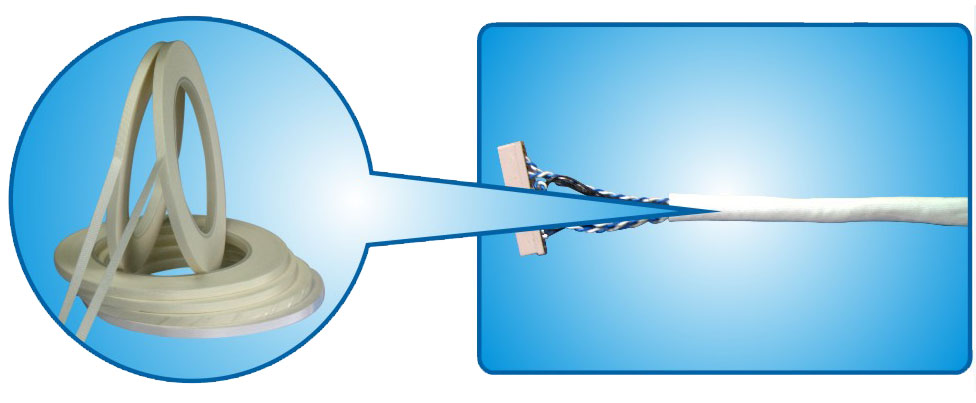

                  Flame retardant acetate cloth                              Application example of flame retardant acetate cloth

KAPTON(金手指)

KAPTON(金手指)                           KAPTON(金手指) 应用举例

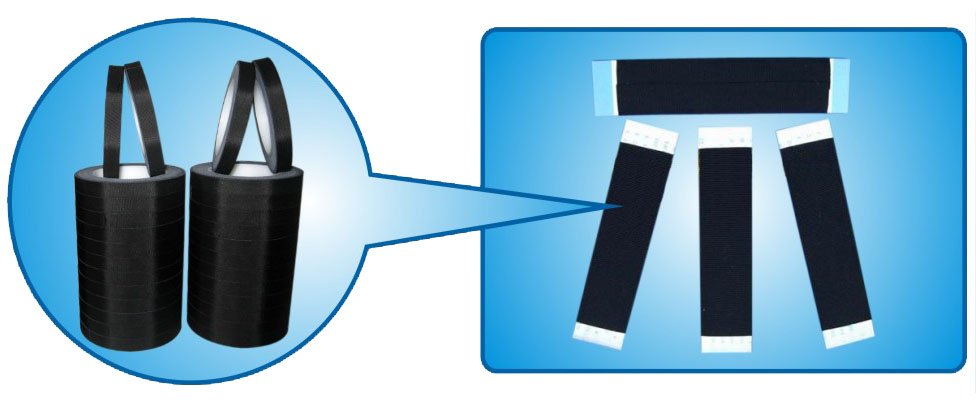

                     Non-flame retardant acetate cloth                            Application examples of non-flame retardant acetate cloth

阻燃醋酸布

绿色胶带                                              绿色胶带应用举例

                  Flame retardant acetate cloth                              Application example of flame retardant acetate cloth

Product Features


Acetate cloth substrate has strong moisture absorption and breathability, good resilience, easy to wash and dry, no static electricity and hair ball, and excellent aging resistance, which can reach more than 15 years.
Acetate cloth tape processed from acetate cloth base material has good insulation, high temperature resistance, anti-aging, soft clothing, good shape, easy punching, easy unwinding, acid, alkali and mildew resistance.The flame retardant properties can be Selected independently by adding flame retardants.

Product Usage


Electrical tape: suitable for automobile wiring harness, wire winding, insulation protection, degaussing coil, communication wiring, etc.
Protective tape: suitable for the surface protection of furniture, speakers, wood grain boards, shoe materials, colored steel, aluminum alloy doors and windows, etc., to prevent wear and reduce the loss of items.
Industrial tape: suitable for roads, uprights, warning area signs and pipeline protection.
包Packaging tape: suitable for sealing and fixing high-grade and heavy packaging.

product category Product ID Thickness(mm) Substrate Glue

Peel force

(kgf/25mm)

Initial tack

(mm)

Withstand voltage

(V/2mA)

Colour

Temperature resistance

(℃)

Retentivity

(H/kg)

Flame retardant

acetate cloth

HT-0822HZ 0.22 Acetate cloth Rubber ≥1.0 <160(¢11.112ball) 3.6

white

black

RT~130 ≥24
HZ-0822WZ

Non-flame retardant

acetate cloth

HT-0811H 0.11/0.22 Acetate cloth Acrylic ≥1.0 <160(¢11.112ball) 3

white

black

RT~130 ≥24
HT-0822H
product category Flame retardant acetate cloth Non-flame retardant acetate cloth
Product ID HT-0822HZ HT-0822WZ HT-0811H HT-0822H

Thickness

(mm)

0.22 0.11/0.22
Substrate Acetate cloth Acetate cloth
Glue Rubber Acrylic

Peel force

(kgf/25mm)

≥1.0 ≥1.0

Initial tack

(mm)

<160

(¢11.112ball)

<160

(¢11.112ball)

Withstand voltage

(V/2mA)

3.6 3
colour

white

black

white

black

Temperature resistance(℃)

RT~130 RT~130

Retentivity

(H/kg)

≥24 ≥24
