High temperature tape series

It is made of PET / PI as the substrate and coated with special acrylic glue or acrylic glue. It has good insulation properties, flame resistance, high voltage resistance, acid and alkali resistance, and corrosion resistance. Including: acrylic adhesive insulating tape and acrylic adhesive insulating tape.

(KAPTON)Gold finger

Green tape

(KAPTON)Gold finger

(KAPTON)Gold finger

Green tape

Green tape

1. KAPTON (gold finger): It is made of PI film (polyimide film) as the base material, coated with silicone adhesive on one side, and can be attached (or not attached)

    to the release film.

2. Green tape: It is made of PET (polyester film) as the base material, coated with silicone adhesive on one side, and can be attached (or not) to the release film.

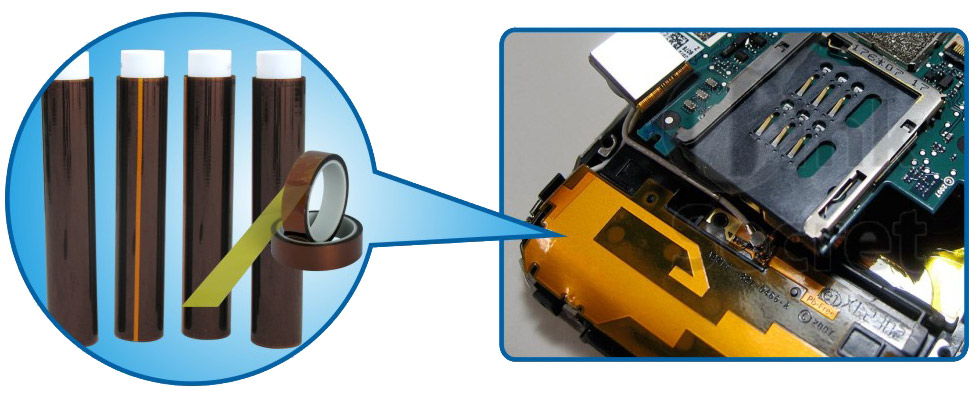

KAPTON(金手指)

KAPTON(金手指)                         KAPTON(金手指) 应用举例

                         KAPTON(Gold finger)                                                KAPTON(Gold finger) Application examples

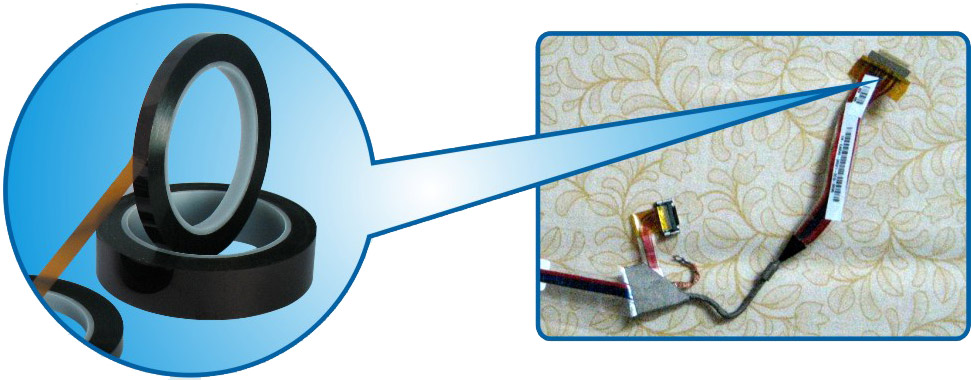

KAPTON(金手指)

KAPTON(金手指)                           KAPTON(金手指) 应用举例

                         KAPTON(Gold finger)                                                KAPTON(Gold finger) Application examples

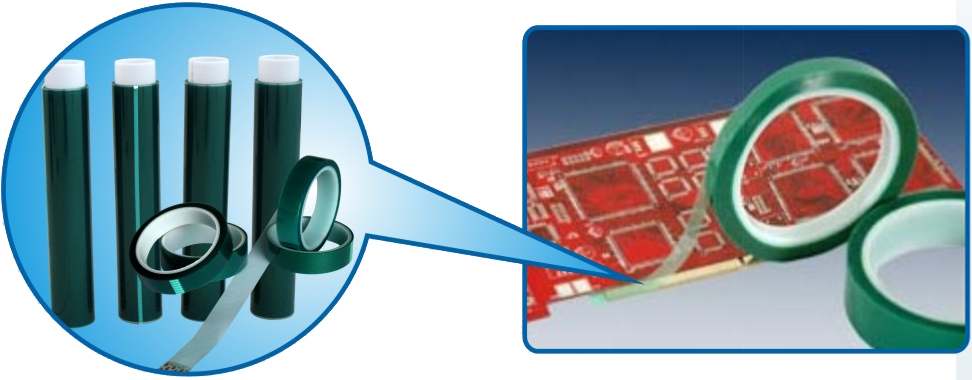

绿色胶带

绿色胶带                                              绿色胶带应用举例

Green tape                                                                      Green tape application case

Product Features


High temperature resistance, solution resistance, no residual glue, high viscosity, anti-aging, stable and reliable performance.
.Silica gel has good high temperature resistance, with PI film as the substrate (KAPTON tape), with high temperature resistance and good insulation; with PET film as the substrate (green tape), it has good high temperature resistance and thermal stability Good, corrosion-resistant features.

Composite material, easy to die cut.

Product Usage


Electronic products, automotive industry, painting and other products, high-temperature spraying protection and insulation, etc..
Printed circuit boards, electronic parts, resistance capacitors are fixed during production and PCB boards are impregnated to shield gold finger parts and prevent plating solution from being immersed and contaminated.Household appliances, machinery, electronics and other industries need high-temperature painting protection.

Product category Product ID

Thickness

(mm)

Substrate Glue

Peel force

(kgf/25mm)

Initial tack

(mm)

Withstand voltage

(V/2mA)

Colour

Temperature resistance

(℃)

Retentivity

(H/kg)

KAPTON

(Gold finger)

HT-0725K 0.06/0.08 Polyimide film Silica gel 0.6 <160(¢5.556ball) 5000 Brown RT~260 ≥24
HT-0750K
Green tape HT-0725G 0.06/0.08 Polyester film Silica gel 0.6 <160(¢5.556ball) 3000 Green RT~180 ≥24
HT-0750G
Product category

KAPTON

(Gold finger)

Green tape
Product ID HT-0725K HT-0750K HT-0725G HT-0750G

Total thickness

(mm)

0.06/0.08 0.06/0.08
Substrate Polyimide film Polyester film
Glue Silica gel Silica gel

Peel force

(kgf/25mm)

0.6

Initial tack

(mm)

<160(¢5.556ball) <160(¢5.556ball)

Withstand voltage

(V/2mA)

5000 3000
Colour Brown Green

Temperature resistance(℃)

RT~260 RT~180

Retentivity

(H/kg)

≥24 ≥24
